Types Of Backflow Preventers Explained (2026 Guide)
If you have ever wondered what keeps dirty water from flowing backward into your clean drinking supply, the answer is a backflow preventer. These small devices do a HUGE job. At Safewater Backflow And Irrigation in Austin, we install, test, and maintain all types of backflow preventers for homes and businesses across the area.
In this 2026 guide, we break down the main types of backflow preventers, how they work, what they cost, and how to choose the right one for your system. Whether you run a restaurant, manage a commercial property, or just want to protect your family, this guide has you covered.

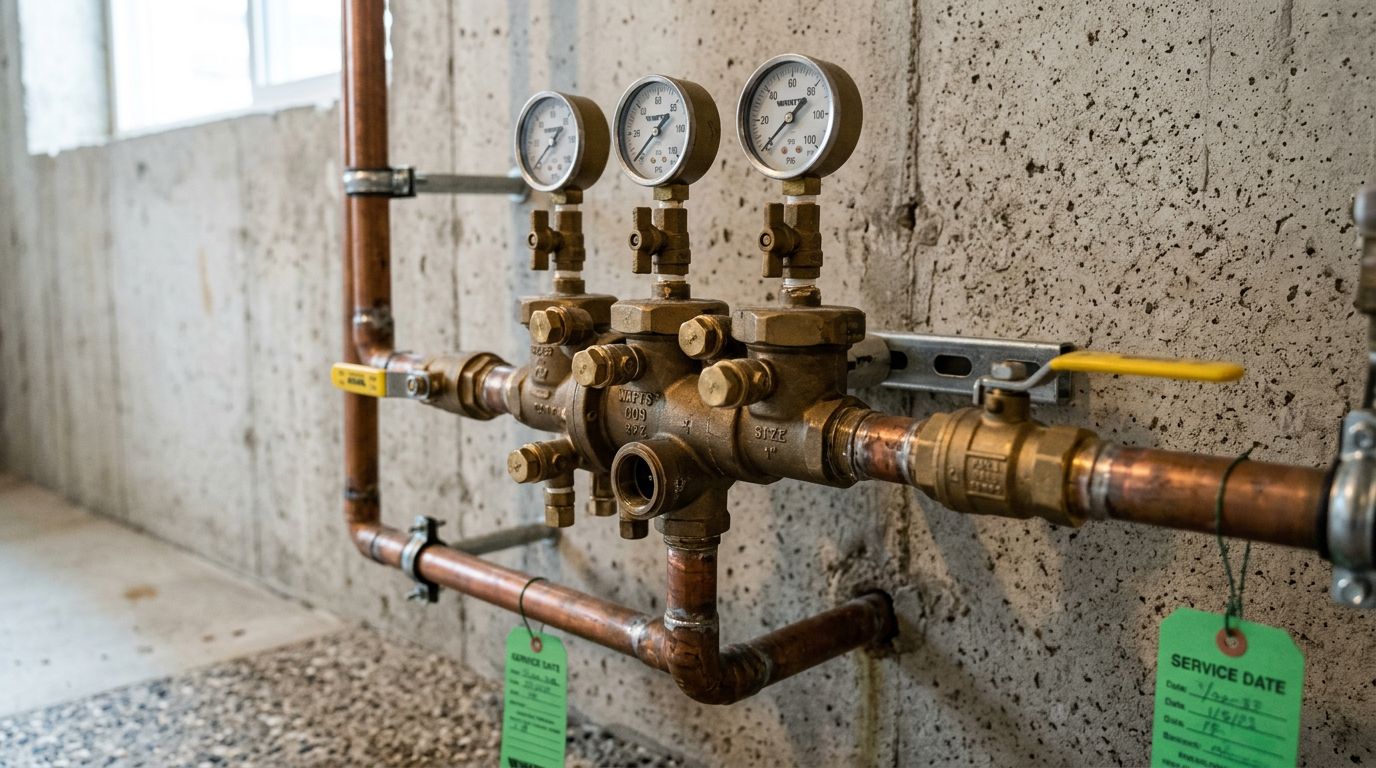

What Is a Backflow Preventer and How Does It Work
A backflow preventer is a device installed on your water line to stop contaminated water from reversing direction and mixing with your clean water. Normally, water flows in ONE direction. But sudden pressure changes can cause it to flow backward. That reverse flow is called backflow, and it can carry chemicals, bacteria, and other nasty stuff into your drinking water.
Backflow happens for two main reasons: back-pressure and back-siphonage. Back-pressure occurs when downstream pressure becomes higher than the supply pressure. Back-siphonage happens when there is a sudden drop in supply pressure, like when a water main breaks. A good backflow preventer blocks both situations.
Here is what a backflow preventer does for your system:
- Creates a physical barrier that only allows water to move one direction
- Protects drinking water from cross-connections with irrigation, boilers, and industrial systems
- Uses check valves and relief valves to react to pressure changes instantly
- Keeps your property compliant with local and state plumbing codes
- Reduces the risk of costly contamination events and health hazards
If you want a deeper look at the science, our team explains exactly how backflow preventers protect drinking water in a way that is easy to understand.

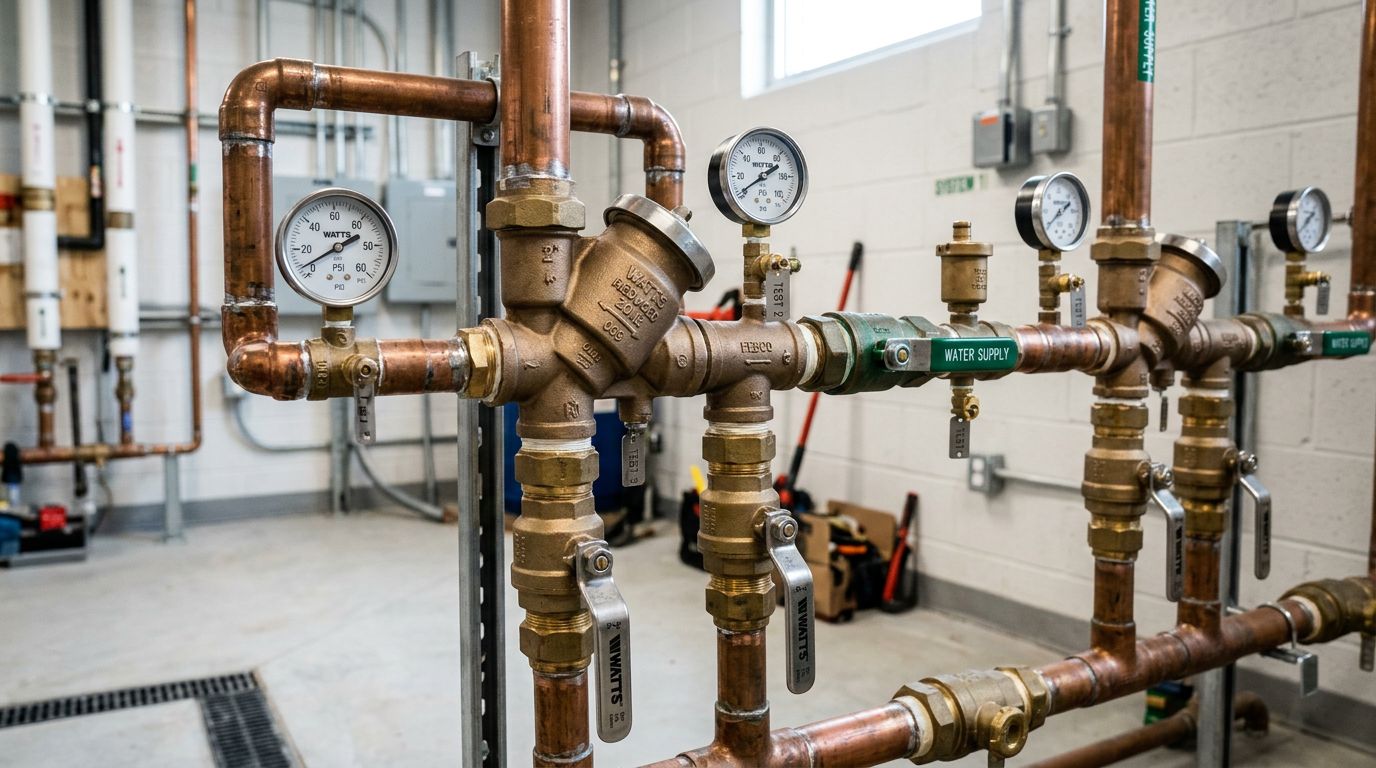

What Are the Main Types of Backflow Preventers
Not all backflow preventers are the same. Different applications require different levels of protection. Below are the most common types you will run into.
1. Reduced Pressure Zone Assembly (RPZ)
The RPZ is the GOLD standard for high-hazard applications. It uses two independent check valves plus a relief valve in between. If either check valve fails, the relief valve dumps water out to prevent backflow. RPZ devices are common on commercial properties, irrigation systems, and fire lines that use chemical additives.
2. Double Check Valve Assembly (DCVA)
A double check valve uses two check valves in a row for redundancy. If one fails, the other still holds. This type is used for low to moderate hazard situations, like some fire sprinkler systems and commercial water lines that do not carry toxic materials.
3. Pressure Vacuum Breaker (PVB)
The PVB is a favorite for residential and commercial irrigation systems. It protects against back-siphonage using a check valve and an air inlet valve. PVBs must be installed above the highest point of the sprinkler heads. They are affordable and reliable for lawn watering setups.
4. Atmospheric Vacuum Breaker (AVB)
The AVB is one of the simplest and cheapest options. It protects only against back-siphonage, not back-pressure. AVBs are often used on individual irrigation zones and hose connections. They cannot be under continuous pressure, so placement matters.
5. Hose Bibb Vacuum Breaker
This is the small device you screw onto an outdoor faucet. It stops water from being siphoned back through a garden hose. It is cheap, easy to install, and a smart first line of defense for any home.

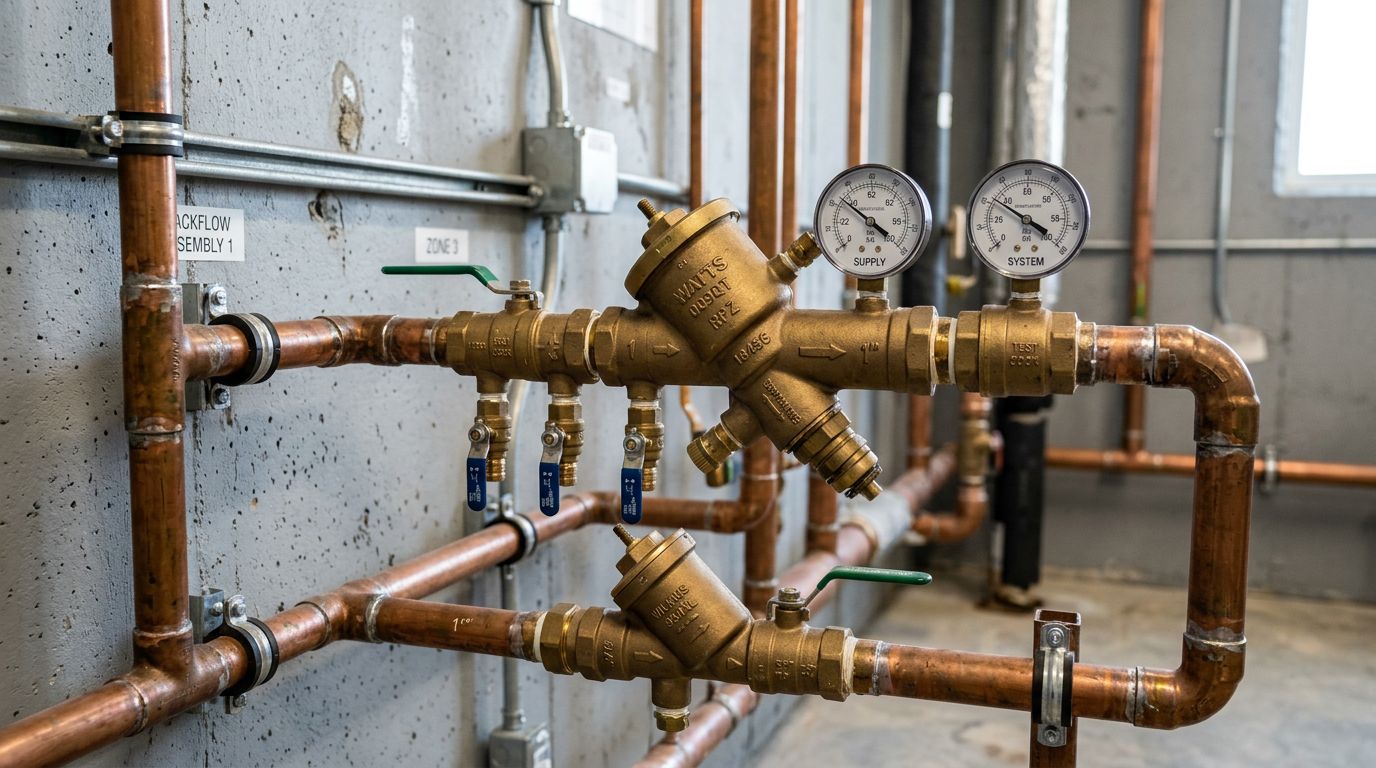

How to Choose the Right Backflow Preventer for Your System
Choosing the right backflow preventer depends on your hazard level, your water system, and local code requirements. Picking the wrong one can leave you unprotected or out of compliance. Here is a simple process we recommend when deciding.
- Identify your hazard level. Is the potential contaminant harmful (high hazard) or just a nuisance (low hazard)? High hazard almost always requires an RPZ.
- Determine the type of backflow risk. Do you need protection from back-pressure, back-siphonage, or both? This narrows your options fast.
- Check your local code. Cities in the Austin area have specific rules. Some require certain devices for irrigation, fire lines, or commercial use.
- Consider your water pressure and flow needs. Some devices cause more pressure loss than others, which matters for large systems.
- Plan for testing and maintenance. Certain devices must be tested annually. Choose one that is accessible and easy to service.
- Consult a certified professional. A licensed tester can confirm the right choice and handle the paperwork.
If you are not sure where to start, professional backflow testing in Texas can help you confirm your current setup meets state and local standards before you make any changes.
Backflow Preventer Installation and Code Requirements
Installation is not a DIY job in most cases. Backflow devices must be placed correctly and often need permits and inspections. Here is what you should know.
Proper Placement Matters
Each device has strict placement rules. PVBs must sit at least 12 inches above the highest sprinkler head. RPZ assemblies need to be installed above ground with proper drainage for the relief valve. Poor placement can void protection and fail inspection.
Permits and Certified Installers
Most municipalities in the Austin area require a licensed plumber or certified installer for backflow assemblies. You will likely need a permit before installation. Skipping this step can lead to fines and forced re-installation.
Annual Testing Requirements
Testable assemblies like RPZ, DCVA, and PVB devices usually need annual testing by a certified tester. The results are reported to your water provider. This keeps your system compliant and confirms the device is actually working.
Freeze and Weather Protection
In Central Texas, freezing temperatures can crack backflow devices. Insulation covers or heated enclosures are smart for above-ground assemblies. A cracked device offers ZERO protection and can flood your yard.
How Much Do Backflow Preventers Cost in 2026
Cost depends on the type of device, the size of your line, and installation complexity. Prices have shifted a bit in 2026 due to material and labor changes, but the ranges below give you a solid ballpark. Keep in mind that testing and permits are usually separate costs.
- Hose bibb vacuum breaker: $10 to $40 for the part, often installed by the homeowner
- Atmospheric vacuum breaker (AVB): $40 to $150 installed
- Pressure vacuum breaker (PVB): $150 to $400 installed for typical irrigation systems
- Double check valve assembly (DCVA): $300 to $800 depending on line size
- Reduced pressure zone assembly (RPZ): $500 to $2,000 or more for larger commercial lines
- Annual testing: typically $75 to $200 per device
- Permits and inspection fees: vary by city, often $50 to $150
For homeowners, the residential backflow testing process in Texas is straightforward and affordable, and it keeps your water safe year after year.
Common Backflow Preventer Problems and Maintenance Tips
Backflow preventers are reliable, but they are not maintenance free. Small issues can turn into big problems if ignored. The good news is that most problems are easy to catch with regular testing and simple upkeep. Here are the issues we see most often and how to stay ahead of them.
- Leaking relief valve: Often caused by debris stuck in a check valve. A quick cleaning or valve replacement usually fixes it.
- Worn rubber parts: Seals and springs wear out over time. Annual testing catches this early.
- Freeze damage: Cracked bodies and split valves are common after cold snaps. Insulate above-ground devices before winter.
- Failed check valves: If a check valve stops sealing, the device may allow backflow. Testing is the only way to know for sure.
- Corrosion and mineral buildup: Hard water can clog internal parts. Periodic servicing keeps things flowing.
- Skipped annual tests: Missing your yearly test can put you out of compliance and leave hidden failures undetected.
Our best maintenance tip is simple: test every year and address small issues fast. A working backflow preventer is invisible until it fails. Regular checkups keep your water clean and your property compliant without surprises.
Conclusion
Backflow preventers are small devices with a MASSIVE responsibility. They keep contaminated water out of your clean supply and protect your family, customers, and community. From simple hose bibb breakers to full RPZ assemblies, the right type depends on your hazard level, your system, and local code.
Choosing wisely, installing correctly, and testing every year are the keys to lasting protection. If you are in Austin, Round Rock, Cedar Park, Georgetown, Kyle, San Marcos, Pflugerville, Leander, or the surrounding areas, our team at Safewater Backflow And Irrigation is ready to help you stay safe and compliant. Reach out today to schedule your backflow testing or inspection.
