Getting your backflow preventer location right is one of those things most property owners never think about until something goes wrong. Here at Safewater Backflow And Irrigation in Austin, we see it all the time. A device gets installed in the wrong spot, and suddenly it fails an inspection, freezes in winter, or becomes nearly impossible to test. The placement of your backflow preventer matters just as much as the device itself.

In this guide, we break down everything you need to know about where these devices go, how high they should sit, and what the code says for 2026. Whether you own a home in Cedar Park or a commercial building in Round Rock, getting the location right protects your water and saves you headaches down the road.

What Is a Backflow Preventer and Why Location Matters

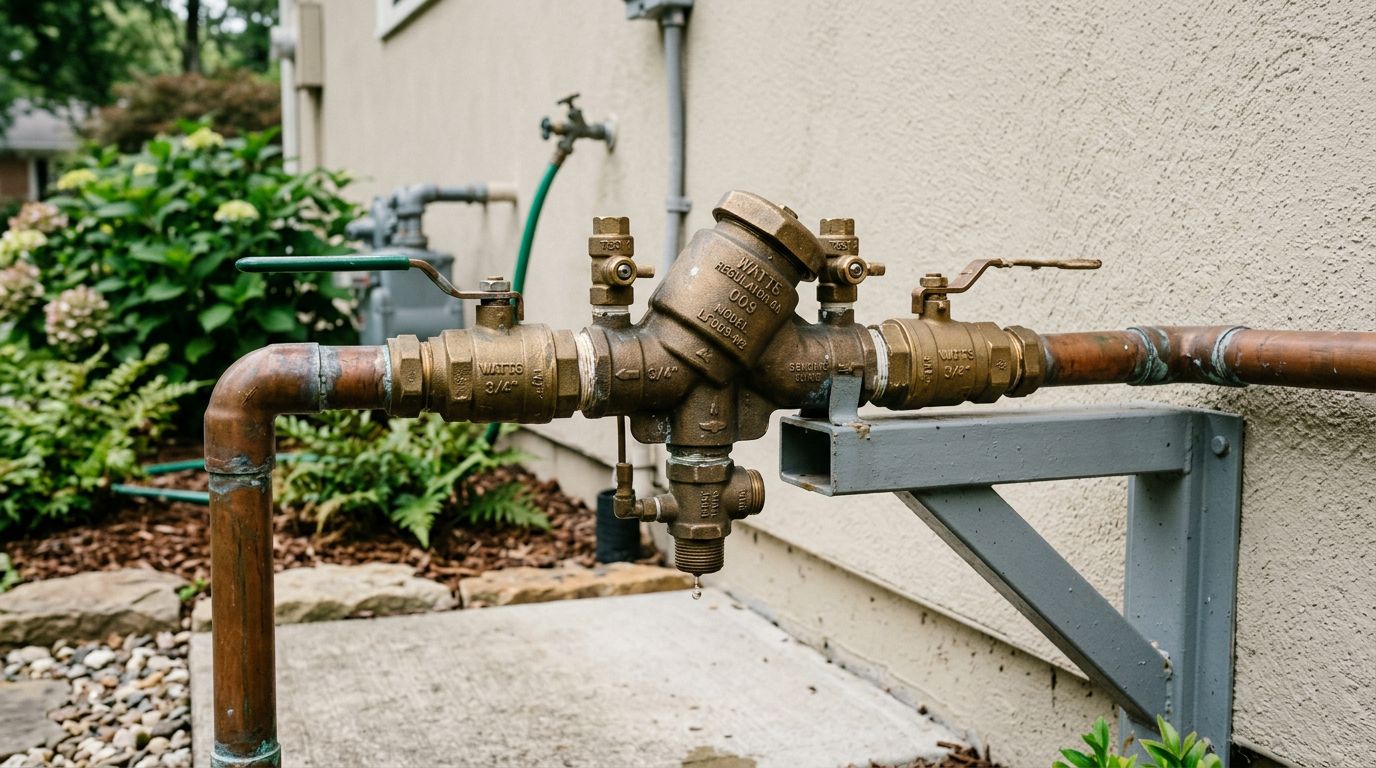

A backflow preventer is a mechanical device that stops contaminated water from flowing backward into your clean water supply. Water is supposed to move in ONE direction. When pressure changes suddenly, like during a water main break or heavy fire hydrant use, water can reverse course. That reversal is called backflow, and it can pull chemicals, fertilizer, or dirty water into your drinking supply.

The location of the device is critical because it needs to be accessible, protected, and positioned to do its job. A poorly placed unit can fail early or create a real safety risk. If you want a deeper look at the science behind these devices, our team explains how backflow preventers protect drinking water in a way that is easy to understand.

• Accessibility for testing: Every device needs annual testing, so it must be reachable.
• Freeze protection: Central Texas winters can dip low enough to crack a poorly placed unit.
• Contamination prevention: Correct placement keeps hazards away from the water supply.
• Code compliance: Wrong location means a failed inspection and possible fines.
• Maintenance access: Repairs and part replacement need clear space around the device.

Where Should a Backflow Preventer Be Installed?

The right spot depends on your property type and the water system it protects. Below are the most common installation points we work with across the Austin area.

At the Water Service Entrance

Many backflow preventers sit right where the main water line enters the property. This is the first line of defense for the whole building. Placing it here protects everything downstream from contamination.

On Irrigation Systems

Sprinkler and irrigation systems almost always need a dedicated backflow device. Fertilizers and pesticides in the soil make these systems a high risk for contamination. The device usually goes near the point where the irrigation line branches off from the main supply.

On Fire Suppression Systems

Fire lines and hydrant connections need backflow protection too. Stagnant water sitting in fire lines can carry bacteria back into the potable supply. These devices are typically larger and require careful placement for testing.

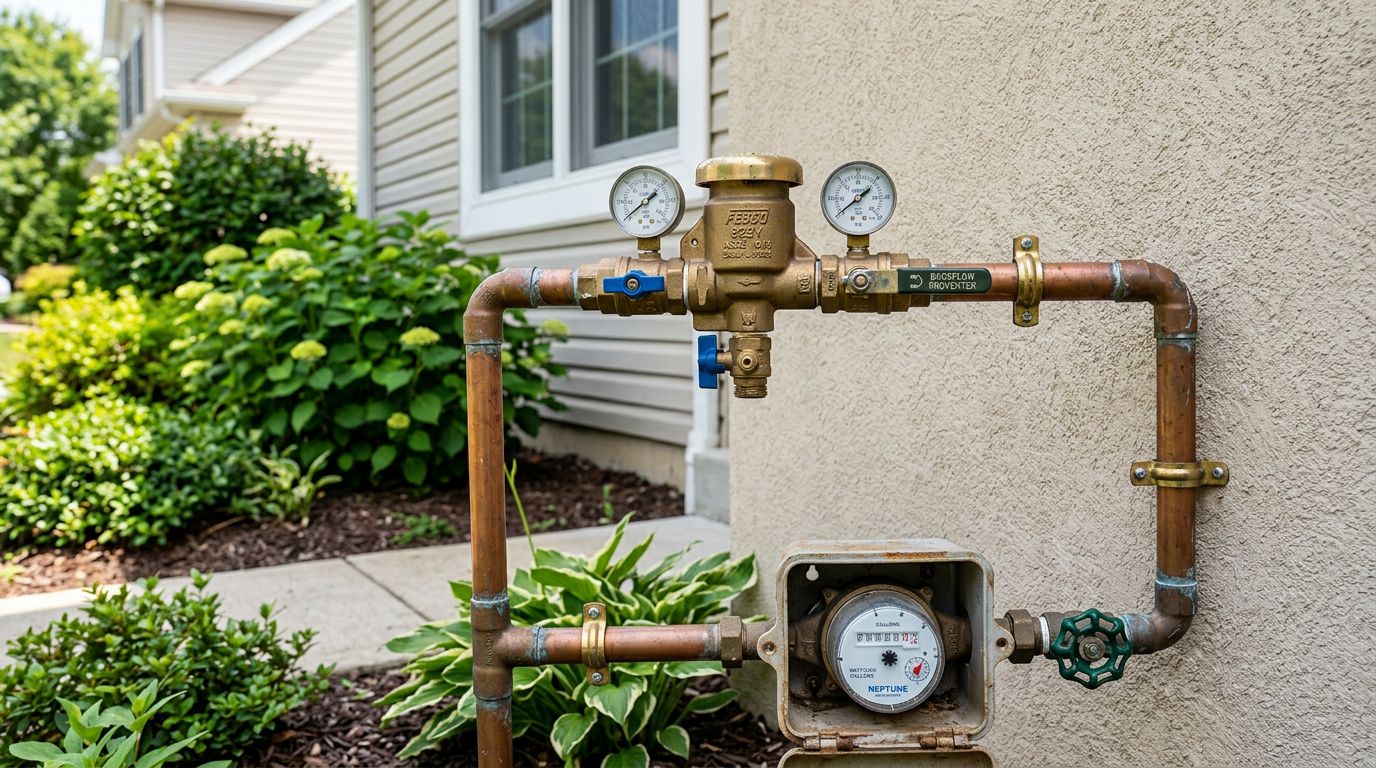

Near the Meter

In some setups the device is installed close to the water meter, either just before or just after it. This keeps the protection point clear and easy to locate during a backflow testing appointment in Texas.

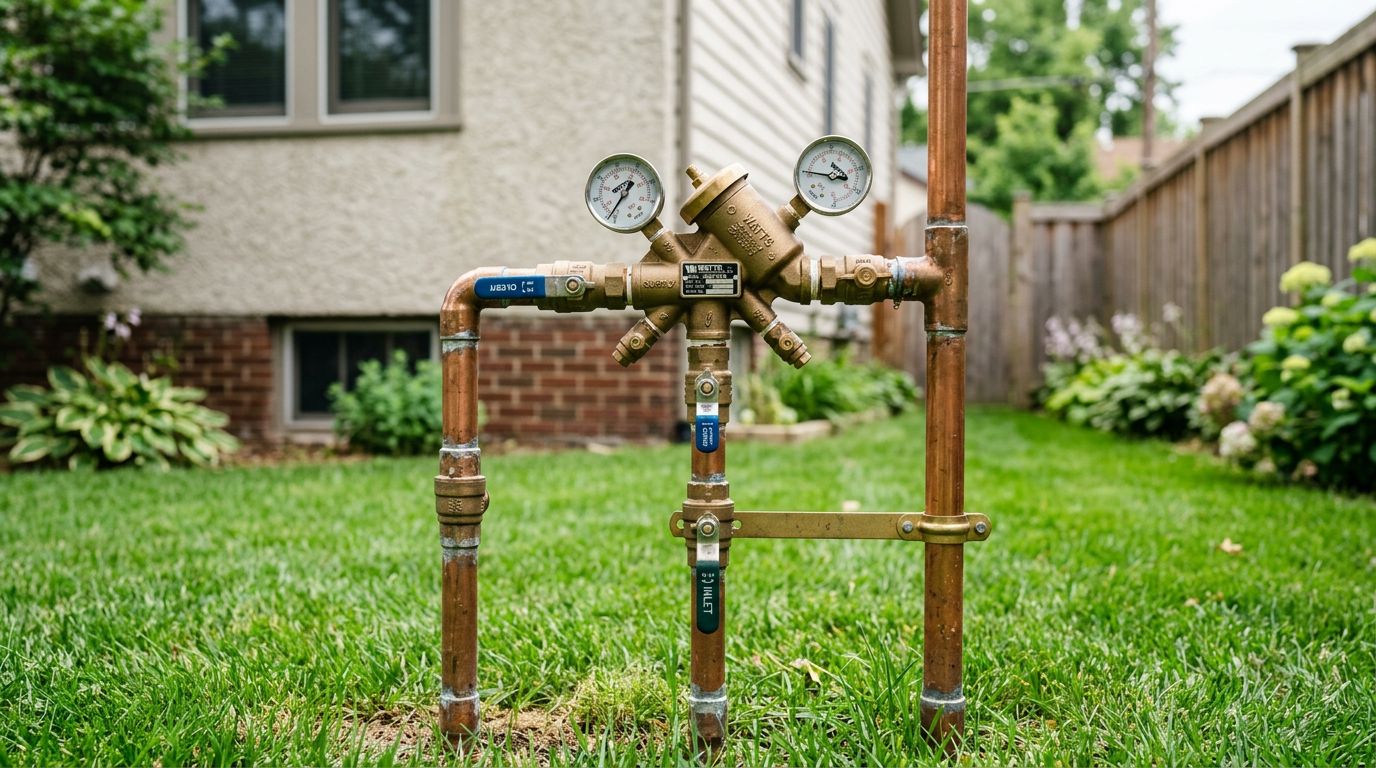

How High Off the Ground Should a Backflow Preventer Be?

Height is one of the most common questions we get, and for good reason. Get it wrong and you may fail an inspection. Most testable assemblies must sit a minimum distance above ground or the flood level. This keeps the relief valve from getting submerged in standing water, which could actually cause backflow instead of preventing it.

1. Minimum 12 inches above grade: Most residential reduced pressure zone assemblies need at least 12 inches of clearance between the ground and the bottom of the device.
2. Maximum around 5 feet: The device should not sit so high that a tester cannot safely reach the test cocks. Around 5 feet is the general upper limit.
3. Above the flood level rim: For units near drains or low spots, the device must sit above any point where water could pool.
4. Clear of obstructions below: Keep the space under the device open so the relief valve can discharge freely.
5. Level and supported: The assembly should be mounted level with proper support so it does not sag or strain the pipes.

These numbers can vary slightly by device size and local code, so it always pays to confirm with a certified tester before finalizing a spot.

Indoor vs. Outdoor Backflow Preventer Placement

Both indoor and outdoor placement have their place, and the right choice depends on your climate, property, and the type of device. In Central Texas, we deal with hot summers and the occasional hard freeze, so both options come with trade-offs. Let us walk through the differences so you can plan smart. If you are a homeowner, our overview of the residential backflow testing process in Texas covers what to expect either way.

• Outdoor placement pros: Easier access for testing, cheaper to install, and simpler to inspect without entering the building.
• Outdoor placement cons: Exposed to freezing, sun damage, and vandalism. Needs insulation or a protective enclosure in winter.
• Indoor placement pros: Protected from weather, freezing, and tampering. Longer device lifespan in many cases.
• Indoor placement cons: Requires floor drainage for relief valve discharge, and access can be tighter for testers.
• Freeze factor: Outdoor units in Leander, Georgetown, and Pflugerville often need heated covers or insulation bags during cold snaps.
• Drainage factor: Indoor reduced pressure devices MUST have a floor drain nearby to handle any discharge.

For most Austin homes with irrigation systems, an outdoor above-ground device works well as long as it is protected. Larger commercial buildings sometimes benefit from indoor placement inside a mechanical room.

What Are the Code Requirements for Backflow Preventer Location in 2026?

Code requirements are not just red tape. They exist to keep your drinking water safe. Here is what property owners in the Austin area should keep in mind heading into 2026.

Annual Testing Is Mandatory

Texas requires testable backflow assemblies to be inspected once a year by a licensed tester. The location must allow a tester to reach every test cock and valve without special equipment. If they cannot reach it, you will need to relocate the device.

Approved Device for the Hazard Level

The type of device must match the risk. High hazard applications like irrigation and fire systems typically require a reduced pressure zone assembly. Lower hazard uses may allow a double check valve. The location often depends on which device your system needs.

Clearance and Access Standards

Codes specify minimum clearance around the device. There must be room to remove parts, operate valves, and perform repairs. Crowding a device against a wall or fence is a common violation. Plan for open space on all sides.

Discharge and Drainage Rules

Reduced pressure devices can discharge water when they activate. Local code requires that discharge go somewhere safe, whether that is an outdoor grade or an indoor floor drain. The relief port cannot be capped or piped in a way that blocks it.

Proper Registration and Records

Many local water authorities require the device to be registered and test reports to be filed. Keeping accurate records tied to the device location helps avoid compliance problems during audits.

Common Backflow Preventer Placement Mistakes to Avoid

Over the years we have corrected a lot of placement errors. Some are simple, some are costly. The good news is that all of them are avoidable with a little planning. Here are the mistakes we see most often across Kyle, San Marcos, West Lake Hills, and the rest of the Austin metro.

• Installing too low to the ground: A device sitting right at grade risks submersion and freeze damage. Always meet the minimum height.
• Blocking access for testing: Burying a device behind bushes, fences, or storage makes annual testing a nightmare and can fail inspection.
• Skipping freeze protection: An exposed outdoor unit with no insulation is a burst pipe waiting to happen during a Texas cold front.
• Ignoring drainage needs: Placing a reduced pressure device where discharge has nowhere to go can flood a room or damage landscaping.
• Wrong orientation: Many devices must be installed horizontally or in a specific direction. Mounting them wrong causes early failure.
• Using the wrong device for the hazard: A double check where a reduced pressure assembly is required is both unsafe and non-compliant.
• Placing it too far from the connection point: The protection point should be as close to the hazard source as possible.
• Forgetting future maintenance: Tight spots may work at install time but make repairs painful later. Leave room to work.

Avoiding these mistakes keeps your system running smoothly and your water safe. When in doubt, a certified professional can spot problems before they turn into expensive repairs.

Conclusion

Backflow preventer location comes down to a few key ideas: keep the device accessible, protect it from freezing, mount it at the right height, and follow local code. Whether you go indoor or outdoor, the goal is always the same. Protect your drinking water and stay compliant with annual testing rules. Small placement details make a BIG difference in how well your system performs.
